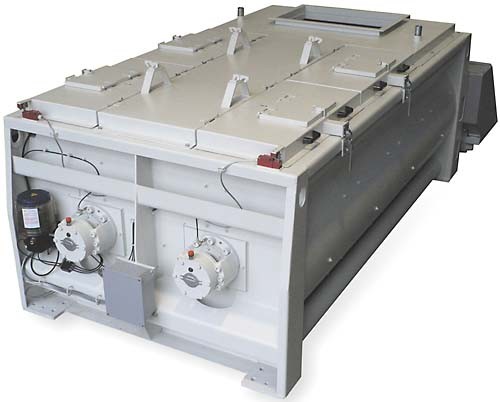

One of SICOMA Mixers products is Twin Shaft Concrete Mixers. SICOMA twin shaft concrete mixer was designed in Italy 16 years ago and has been refined to give customers outstanding products. The MAO Heavy Duty Mixer series is the most widely used twin shaft model in the world today. Where over 6000 SICOMA Mixers products are used worldwide in ready mix, precast, block, paver, and dam applications. SICOMA Concrete This mixer can produce more than 1 million cubic meters of concrete every day. Its considerable capacity allows it to double throughput without the need for two mixers and more material feed separation.

The art of mixing concrete is to make a good concrete set. Because mixing occurs in free space, above the mixer floor, the wear on the liner plate is very low, about 70% of its outer surface is seldom touched by concrete. Features MAO SICOMA These mixers are much better than other mixers in its class. Its strong frame, three-axle seals, more efficient dental absorbers and electronic alarm units as standard equipment SICOMA Mixers. Our 5 year warranty gives you as proof of confidence in its reliability.
SICOMA Twin Shaft Mixer size ranges from 1 to 8 cubic meters of concrete compacted results, which covers every requirement of our customers in terms of production capacity. Excellent performance is recognized in several fields of application, in Concrete Industry as well as Industrial Plant (waste treatment, chemical industry, glass industry). Depending on the type of application, all mixers can be equipped with multiple accessories and customized with many add-ons to achieve a certain productivity, mixing quality and life expectancy requested in a particular field.

SICOMA Twin Shaft Concrete Mixer has some description you need to know, among others:

• Extra-Rigid Tank

Rigid tank frames eliminate the risk of deformation during the machine work (also in the container) and also during full load operation. This ensures the correct planarity of the shaft seal. The metal frame for the aggregate hoppers and the scales can be placed right in the mixer with no additional accessories.

• Mixing Elements

The SICOMA Mixers tank is coated with Ni-Hard Cast Iron from a minimum hardness of 530HB. Mixing weapons, with low profile to avoid material formation, are made from Spheroidal Iron. The mixing blade is made from Ni-Hard Cast Iron with a minimum hardness of 530HB. A number of blades, positioning and orientation ensure the correct combination of rolling and material circulation during mixing action.

• Shaft Supports and Seal

The modular support patented by SICOMA Mixers is created with two separate parts. The bearings are lubricated with a durable oil bath. The seals, based on an exclusive counter-rotating disc system, are lubricated with fatty liquid.

• Automatic Lubrication

The oil required by the seal to keep the surface turned back is lubricated, delivered by the automatic pump through a sequential distributor. This uniformly divides the required amount of fat appropriately (0.09 kg / hour) and ensures low oil consumption and unnecessary mixing of contamination.

• Gearboxes

The gearbox of the mixing group is the epicyclical type. The first reduction is made by a pulley transmission equipped with a constant universal connection to keep the shaft synchronized. Low input speeds to the gearbox allow lubricating oil to work on low thermal loads. The connection between the gearbox and the tank is made with an exclusive buzzer housing. This unique feature provides better stiffness in the coupling between the gearbox and the tank makes assembly and care of pads and seals very easy.

***
